Description

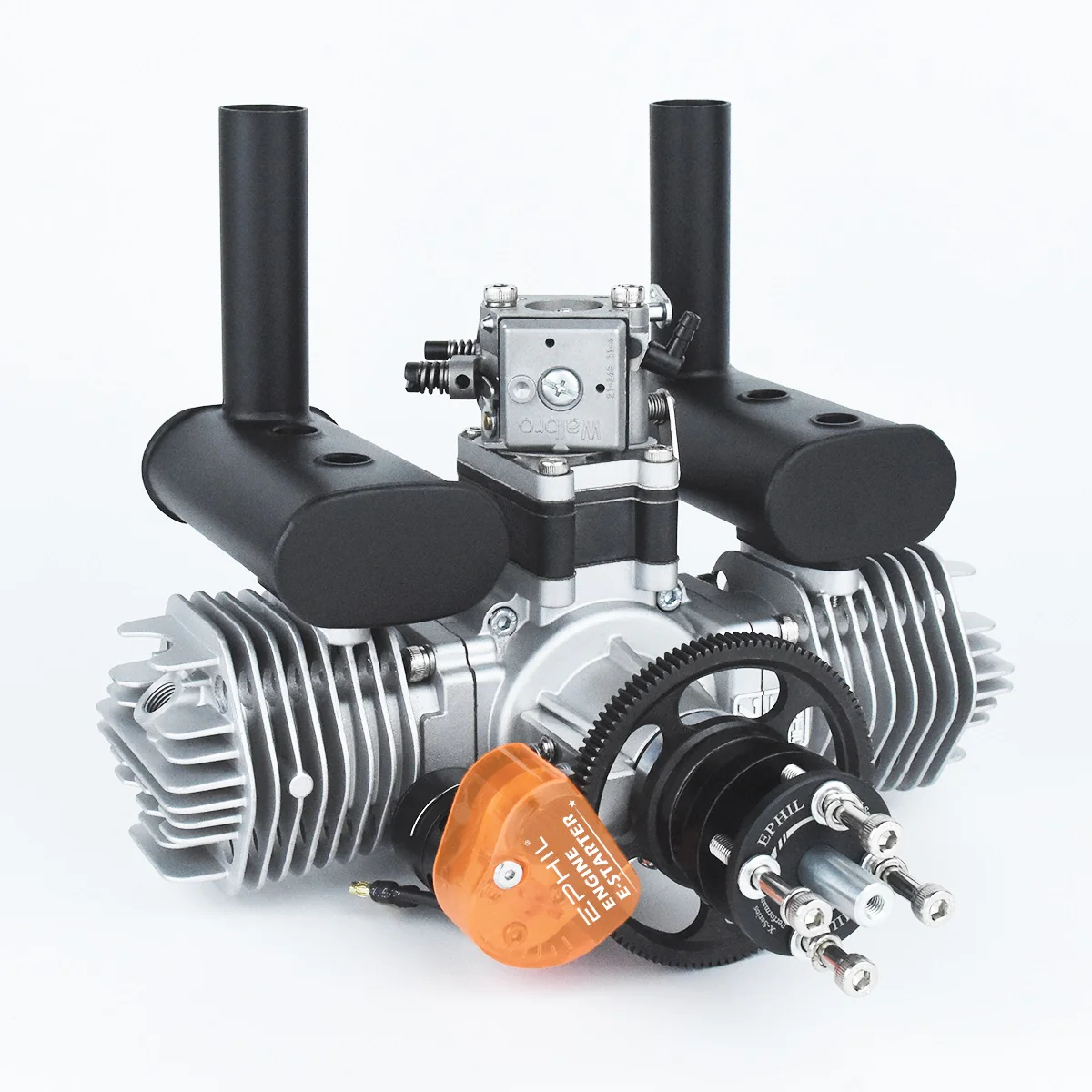

The X-76cc-T Pro is a professional-grade, 76cc 2-stroke gasoline engine designed for RC aircraft and UAVs.
It features an opposite twin-cylinder design that minimizes vibration and offers smooth operation across its speed range.
Key attributes include a lightweight construction for an excellent thrust-to-weight ratio, easy remote start, and components like a Walbro carburetor, muffler set, CM6 Iridium spark plugs, and an electric starter.
The engine delivers 9.0 HP, operating within a speed range of 1600-7300 RPM, and has a total weight of 2422g (5.34 lb).
Model: X-76cc-T Pro
Displacement: 76cc (4.64 cu in)
Performance: 9.0 HP
Speed Range: 1600-7300 RPM (Test Propeller-24*9)
Bore: 39 mm (1.54 in)
Stroke: 32.5mm (1.28 in)
Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)
Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 22×10; 23×8; 23×10; 24×8
For the best performance and maximum thrust, we highly recommend using the Falcon 24×8 propeller
Weight of Main Engine: 1940g
Weight of Muffler Set: 174g (L&R Mufflers; Screws)
Weight of Aluminum Standoffs Set: 72g
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of CDI (Ignition): 173g
Weight of Starter: 123g
Weight of ESC: 36g
Total Weight: 2422g (5.34 lb)
